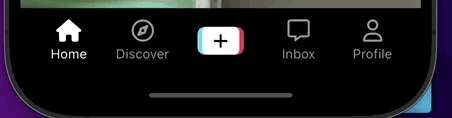

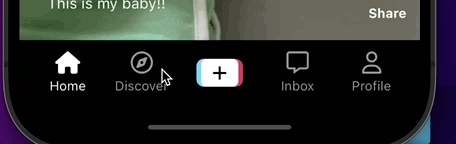

9.1 Light Navigation
여기서 홈 탭 이외에는 흰색으로 바뀌게 하고
NavTab(
text: "Home",
isSelected: _selectedIndex == 0,
icon: FontAwesomeIcons.house,
selectedIcon: FontAwesomeIcons.house,
onTap: () => _onTap(0),
--------------------------
selectedIndex: _selectedIndex),
--------------------------
NavTab(
text: "Discover",
isSelected: _selectedIndex == 1,
icon: FontAwesomeIcons.compass,
selectedIcon: FontAwesomeIcons.solidCompass,
onTap: () => _onTap(1),
--------------------------
selectedIndex: _selectedIndex),
--------------------------
Gaps.h24,
// Event listener
GestureDetector(
onTap: _onPostVideoButtonTap,
child: const PostVideoButton(),
),
Gaps.h24,
NavTab(
text: "Inbox",
isSelected: _selectedIndex == 3,
icon: FontAwesomeIcons.message,
selectedIcon: FontAwesomeIcons.solidMessage,
onTap: () => _onTap(3),
--------------------------
selectedIndex: _selectedIndex),
--------------------------
NavTab(
text: "Profile",
isSelected: _selectedIndex == 4,
icon: FontAwesomeIcons.user,
selectedIcon: FontAwesomeIcons.solidUser,
onTap: () => _onTap(4),
--------------------------
selectedIndex: _selectedIndex),
--------------------------
],
),
),
),
);
}
}
import 'package:flutter/material.dart';
import 'package:font_awesome_flutter/font_awesome_flutter.dart';
import '../../../constants/gaps.dart';
class NavTab extends StatelessWidget {
const NavTab({
super.key,
required this.text,
required this.isSelected,
required this.icon,
required this.onTap,
required this.selectedIcon,
---------------
required this.selectedIndex,
---------------
});
final String text;
final bool isSelected;
final IconData icon;
final IconData selectedIcon;
final Function onTap;
---------------
final int selectedIndex;
---------------
@override
Widget build(BuildContext context) {
// 누를 수 있는 범위 늘려주기 위젯
return Expanded(
child: GestureDetector(
onTap: () => onTap(),
// 누를 수 있는 범위 늘려주기 위젯, 여기는 컨테이너로 감싸줌
child: Container(
---------------
color: selectedIndex == 0 ? Colors.black : Colors.white,
---------------
child: AnimatedOpacity(
duration: const Duration(milliseconds: 300),
opacity: isSelected ? 1 : 0.6,
child: Column(
// 이걸 씀으로써 Columndprp children공간 만큼만 차지하라고 함.
mainAxisSize: MainAxisSize.min,
children: [
FaIcon(
isSelected ? selectedIcon : icon,
---------------
color: selectedIndex == 0 ? Colors.white : Colors.black,
---------------
),
Gaps.v5,
Text(
text,
style: TextStyle(
---------------
color: selectedIndex == 0 ? Colors.white : Colors.black,
---------------
),
),
],
),
),
),
),
);
}
}
// Event listener
GestureDetector(
onTap: _onPostVideoButtonTap,
---------------
child: PostVideoButton(inverted: _selectedIndex != 0),
---------------
),
class PostVideoButton extends StatelessWidget {
--------------------
const PostVideoButton({super.key, required this.inverted});
final bool inverted;
--------------------
@override
Widget build(BuildContext context) {
borderRadius: BorderRadius.circular(
Sizes.size8,
),
),
),
),
Container(
height: 30,
padding: const EdgeInsets.symmetric(
horizontal: Sizes.size12,
),
decoration: BoxDecoration(
--------------------
color: !inverted ? Colors.white : Colors.black,
--------------------
borderRadius: BorderRadius.circular(
Sizes.size6,
),
),
child: Center(
child: FaIcon(
FontAwesomeIcons.plus,
--------------------
color: !inverted ? Colors.black : Colors.white,
--------------------
size: 18,
),
),
)
],
);
}
}
9.2 TabBar
State<MainNavigationScreen> createState() => _MainNavigationScreenState();
}
class _MainNavigationScreenState extends State<MainNavigationScreen> {
----------------
//제일 먼저 표시되는 _selectedIndex 화면
int _selectedIndex = 1;
----------------
// //offStage쓸 땐 이거 필요 없음
// final screens = [
// StfScreen(key: GlobalKey()),
// StfScreen(key: GlobalKey()),
// Container(),
// StfScreen(key: GlobalKey()),
// StfScreen(key: GlobalKey()),
// ];
void _onTap(int index) {
setState(() {
_selectedIndex = index;
});
}
//event listener 함수
void _onPostVideoButtonTap() {
Navigator.of(context).push(
MaterialPageRoute(
builder: (context) => Scaffold(
appBar: AppBar(
title: const Text("Record Video"),
),
),
// 전체화면으로 만들어주기
fullscreenDialog: true),
);
}
@override
Widget build(BuildContext context) {
return Scaffold(
//입력창의 키보드등이 열리면 플러터는 디폴트로 화면을 자동 조정해줌:그걸 false
resizeToAvoidBottomInset: false,
backgroundColor: _selectedIndex == 0 ? Colors.black : Colors.white,
// // 선택된 탭의 페이지만 보여주기: 항상 새로운 페이지로써 표시됨
// body: screens.elementAt(_selectedIndex),
// offStage: 해당 위젯을 안 보이게 하면서 계속 존재하게 해주는 위젯
body: Stack(
children: [
Offstage(
offstage: _selectedIndex != 0,
child: const VideoTimelineScreen(),
),
Offstage(
offstage: _selectedIndex != 1,
----------------
child: const DiscoverScreen(),
----------------
),
import 'package:flutter/material.dart';
import 'package:tiktok_clone/constants/sizes.dart';
final tabs = [
"Top",
"Users",
"Videos",
"Sounds",
"LIVE",
"Shopping",
"Brands",
];
class DiscoverScreen extends StatelessWidget {
const DiscoverScreen({super.key});
@override
Widget build(BuildContext context) {
return DefaultTabController(
length: tabs.length,
child: Scaffold(
appBar: AppBar(
elevation: 1,
title: const Text("Discover"),
bottom: TabBar(
splashFactory: NoSplash.splashFactory,
padding: const EdgeInsets.symmetric(
horizontal: Sizes.size16,
),
isScrollable: true,
labelStyle: const TextStyle(
fontWeight: FontWeight.w600,
fontSize: Sizes.size16,
),
indicatorColor: Colors.black,
labelColor: Colors.black,
unselectedLabelColor: Colors.grey.shade500,
tabs: [
for (var tab in tabs)
Tab(
text: tab,
),
],
),
),
body: TabBarView(children: [
for (var tab in tabs)
Center(
child: Text(
tab,
style: const TextStyle(fontSize: 28),
),
)
]),
),
);
}
}

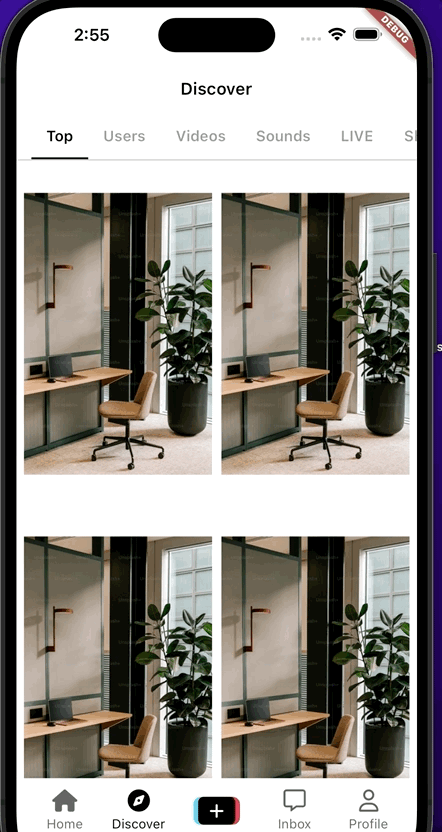

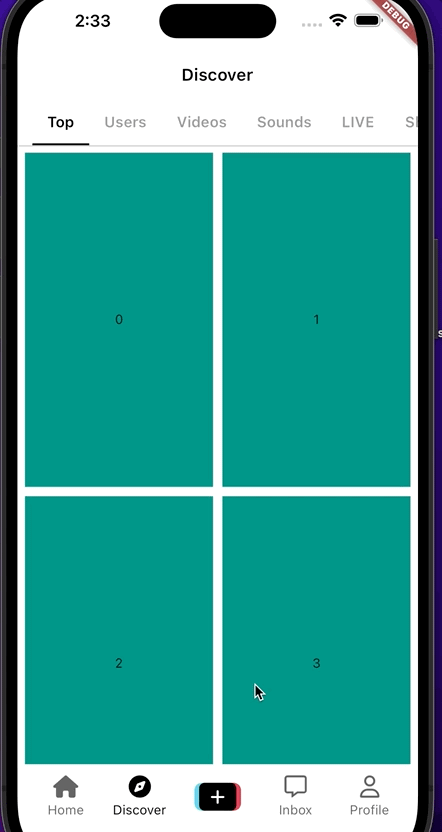

9.3 GridView
make the grid(상품 하나하나)
body: TabBarView(children: [
-----------------------
GridView.builder(
itemCount: 20,
padding: const EdgeInsets.all(
Sizes.size8,
),
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
crossAxisSpacing: Sizes.size10,
mainAxisSpacing: Sizes.size10,
childAspectRatio: 9 / 16,
),
itemBuilder: (context, index) => Container(
color: Colors.teal,
child: Center(
child: Text("$index"),
),
),
),
for (var tab in tabs.skip(1))
Center(
child: Text(
tab,
style: const TextStyle(fontSize: 28),
-----------------------
),
)
]),
),
);
}
}

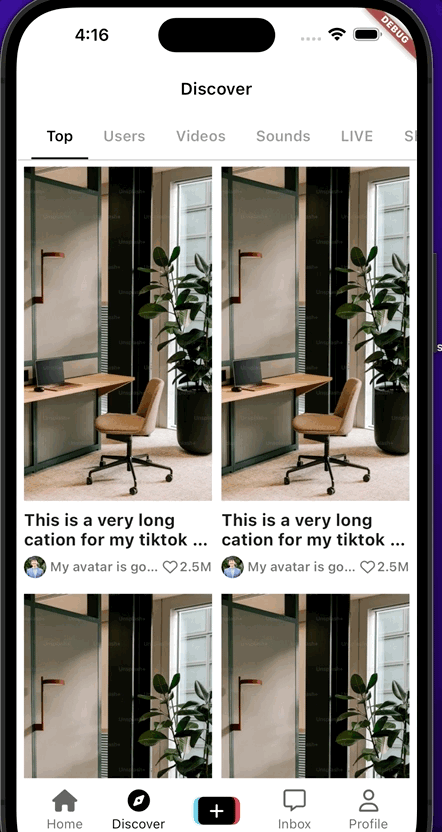

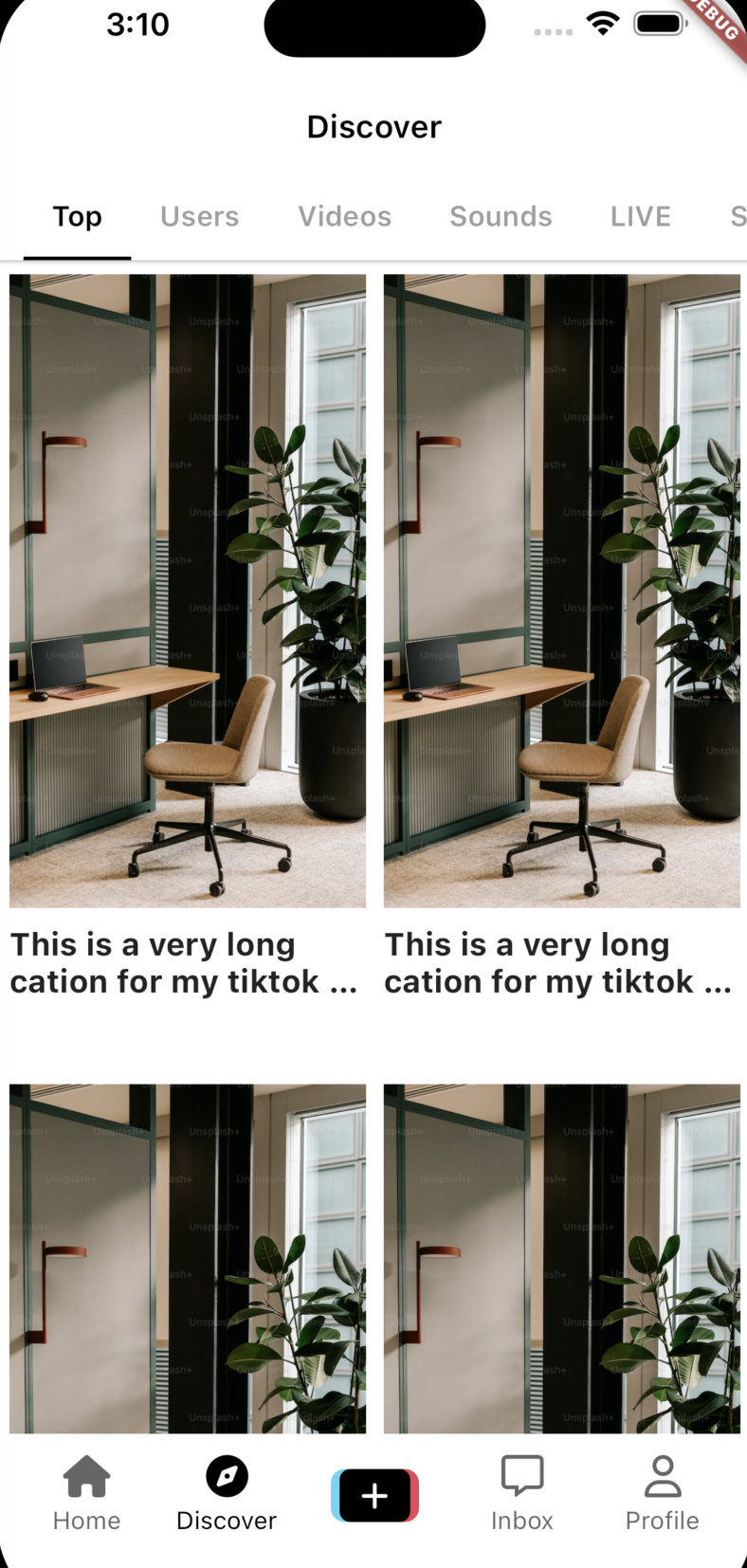

9.4 Grid Item
itemBuilder: (context, index) =>
------------------
// 네트워크에 있는 이미지 가지고 오는 동안 로컬에 저장되어 있는 이미지 가져오기
FadeInImage.assetNetwork(
placeholder: "assets/images/image.jpeg",
image:
"https://plus.unsplash.com/premium_photo-1683880731792-39c07ceea617?ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D&auto=format&fit=crop&w=687&q=80",
),
),
------------------
for (var tab in tabs.skip(1))
특정한 비율을 따르는 위젯을 만드는 위젯+ 아무리 긴 문장이라도 2줄로 잘라준다
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
crossAxisSpacing: Sizes.size10,
mainAxisSpacing: Sizes.size10,
------------------
childAspectRatio: 9 / 20,
),
itemBuilder: (context, index) => Column(
children: [
//특정한 비율을 따르는 위젯을 만드는 위젯
AspectRatio(
aspectRatio: 9 / 16,
// 네트워크에 있는 이미지 가지고 오는 동안 로컬에 저장되어 있는 이미지 가져오기
child: FadeInImage.assetNetwork(
fit: BoxFit.cover,
placeholder: "assets/images/image.jpeg",
image:
"https://plus.unsplash.com/premium_photo-1683880731792-39c07ceea617?ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D&auto=format&fit=crop&w=687&q=80",
),
),
Gaps.v10,
const Text(
"This is a very long cation for my tiktok that im upload just for now",
//아무리 긴 문장이라도 2줄로 잘라준다
overflow: TextOverflow.ellipsis,
maxLines: 2,
style: TextStyle(
fontSize: Sizes.size16 + Sizes.size2,
fontWeight: FontWeight.bold,
------------------
),
),
],
),
),
for (var tab in tabs.skip(1))
style: TextStyle(
fontSize: Sizes.size16 + Sizes.size2,
fontWeight: FontWeight.bold,
),
),
----------------------
Gaps.v7,
//text style을 자식 text들에 동시 적용할 수 있는 위젯
DefaultTextStyle(
style: TextStyle(
color: Colors.grey.shade600, fontWeight: FontWeight.w600),
child: Row(
children: [
const CircleAvatar(
radius: 12,
backgroundImage: NetworkImage(
"https://media.licdn.com/dms/image/C4D03AQEfaXwimUdjmw/profile-displayphoto-shrink_100_100/0/1517469163893?e=1689811200&v=beta&t=0i37nt-0uT5JvkQGUUzQlZtA5fUFFYUVinTFDTyo0iQ",
),
),
Gaps.h4,
const Expanded(
child: Text(
"My avatar is going to be very long",
maxLines: 1,
overflow: TextOverflow.ellipsis,
),
),
Gaps.h4,
FaIcon(
FontAwesomeIcons.heart,
size: Sizes.size16,
color: Colors.grey.shade600,
),
Gaps.h2,
const Text(
"2.5M",
----------------------
)
],
),
),
],
),
),
for (var tab in tabs.skip(1))

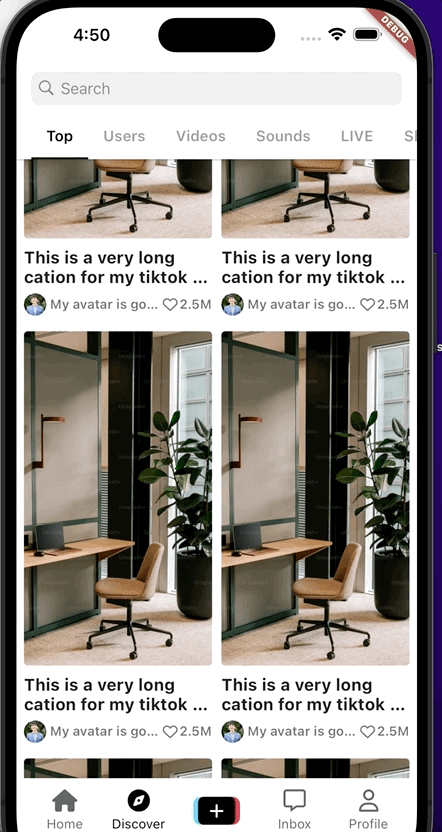

9.5 CupertinoSearchTextField
return DefaultTabController(
length: tabs.length,
child: Scaffold(
appBar: AppBar(
elevation: 1,
--------------------------
title: const CupertinoSearchTextField(),
--------------------------
bottom: TabBar(
splashFactory: NoSplash.splashFactory,
padding: const EdgeInsets.symmetric(
horizontal: Sizes.size16,
itemBuilder: (context, index) => Column(
children: [
--------------------
Container(
//AspectRatio가 BoxDecoration까지 overflow하고 있으므로 clipBehavior로 잘라주기
clipBehavior: Clip.hardEdge,
decoration: BoxDecoration(
borderRadius: BorderRadius.circular(
Sizes.size4,
),
),
--------------------
//특정한 비율을 따르는 위젯을 만드는 위젯
child: AspectRatio(
aspectRatio: 9 / 16,
//컨트롤러 사용위해 StatefulWidget바꾸고
class DiscoverScreen extends StatefulWidget {
const DiscoverScreen({super.key});
@override
State<DiscoverScreen> createState() => _DiscoverScreenState();
}
class _DiscoverScreenState extends State<DiscoverScreen> {
----------------------
final TextEditingController _textEditingController =
TextEditingController(text: "Initial Text");
----------------------
----------------------
void _onSearchChanged(String value) {
print(value);
}
void _onSearchSubmitted(String value) {
print(value);
}
@override
void dispose() {
_textEditingController.dispose();
super.dispose();
}
----------------------
@override
Widget build(BuildContext context) {
return DefaultTabController(
length: tabs.length,
child: Scaffold(
appBar: AppBar(
elevation: 1,
title: CupertinoSearchTextField(
----------------------
controller: _textEditingController,
onChanged: _onSearchChanged,
onSubmitted: _onSearchSubmitted,
),
----------------------
bottom: TabBar(

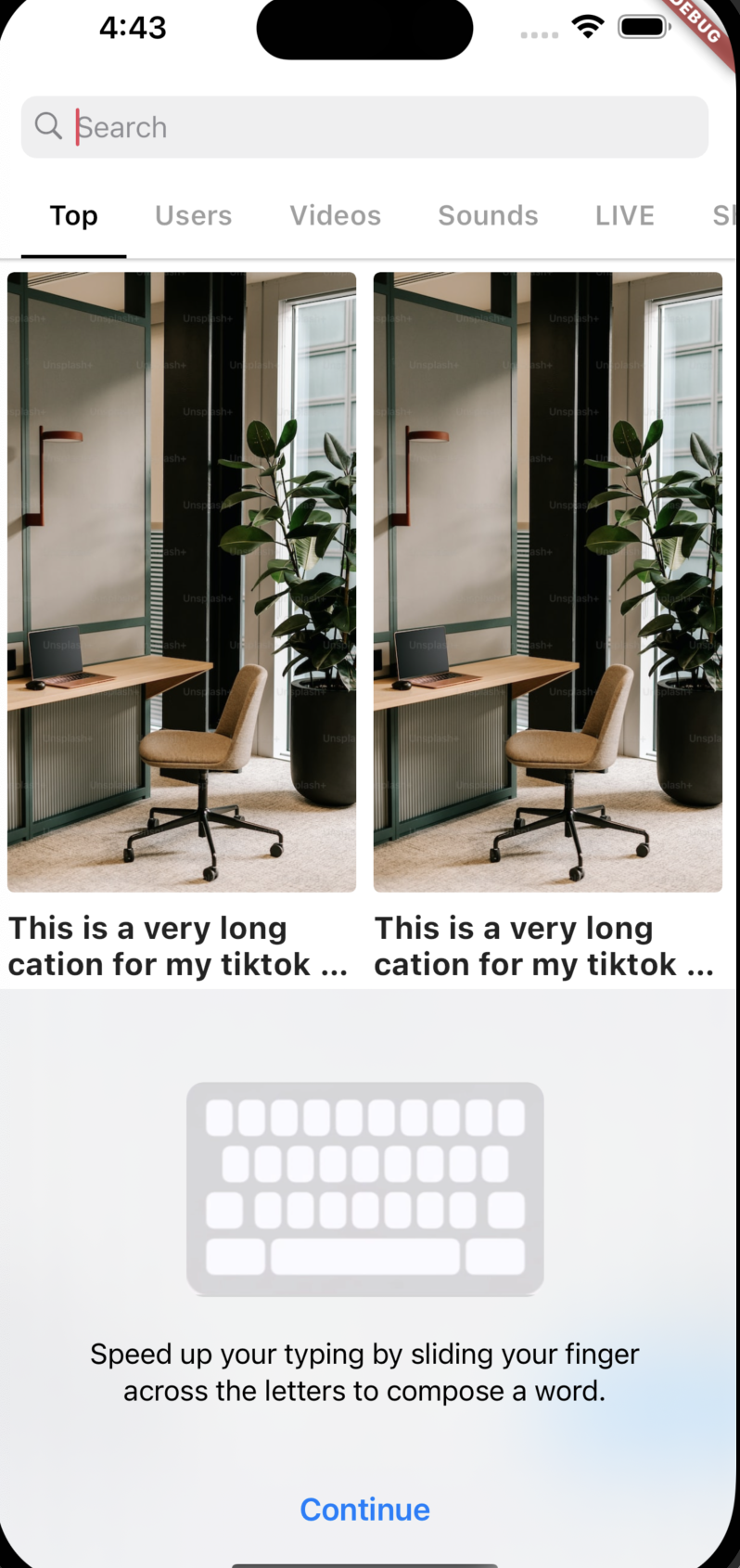

커서 컬러 바꾸기 위해선 여기서 해줘야 함

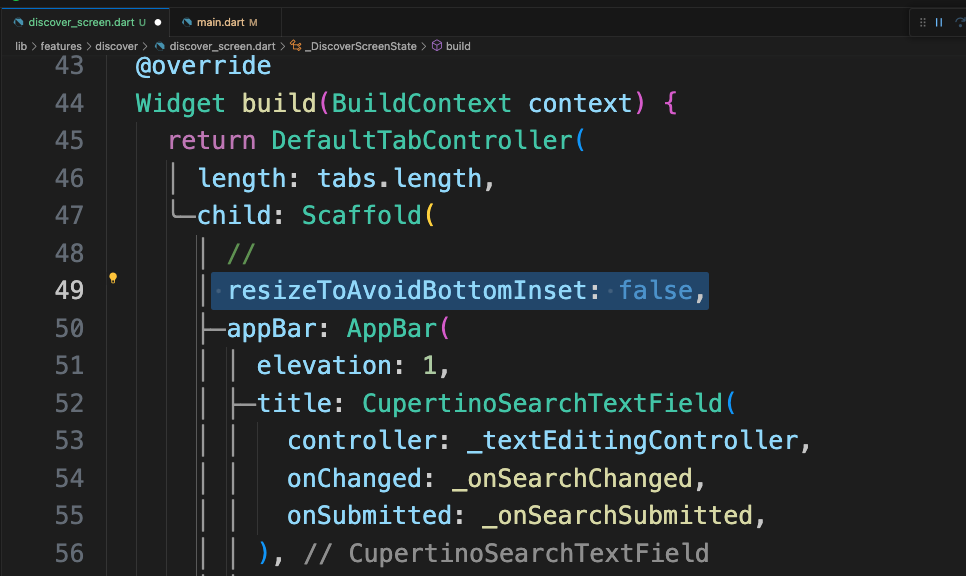

가려진 영역 이걸로 수정
