Build VPC 본문
1. Establishment of Seoul Region Network Environment
1 Create VPC
Create after setting VPC name and CIDR (IP band to use).
2 Create Subnet
Create 2 Public Subnets and 2 Private Subnets in 2 Availability Zones.
* Public Subnet settings to automatically allocate public IPs to EC2 instances created in the Public Subnet.
3 Create Internet Gateway(IGW)
4 Create NAT Gateway(NAT GW)
* There is a NAT Instance with a similar function, but it is recommended to use a NAT Gateway because it has a security vulnerability.
2. Establishment of Virginia Region Network Environment
1 Create VPC
2 Create Subnet
Create 2 Public Subnets and 2 Private Subnets in 2 Availability Zones.

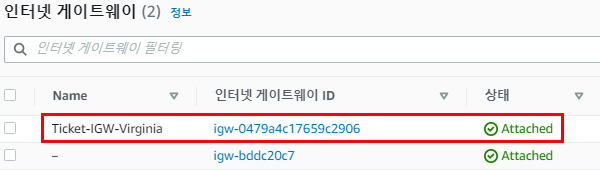

3 Create Internet Gateway(IGW)
4 Create NAT Gateway(NAT GW)
5 Create VPC Peering
6 Create Seoul Region Routing Table
* After VPC peering, a Routing Table must be created.
Connect with Public Subnet
If the destination IP of the packet is 10.1.0.0/16, it is sent to Virginia VPC through VPC Peering.
Outgoing packets are sent to the IGW.

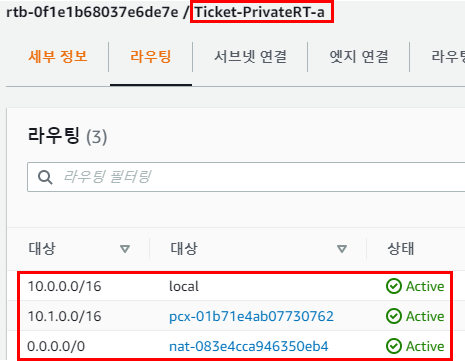

Connect with Private Subnet
If the destination IP of the packet is 10.1.0.0/16, it is sent to Virginia VPC through VPC Peering.
Outgoing packets are sent to the NAT GW.
7 Create Virginia Region Routing Table
Connect with Public Subnet
If the destination IP of the packet is 10.1.0.0/16, it is sent to Virginia VPC through VPC Peering.
Outgoing packets are sent to the IGW.
Connect with Private Subnet
If the destination IP of the packet is 10.1.0.0/16, it is sent to Virginia VPC through VPC Peering.
Outgoing packets are sent to the NAT GW.
